mde.hpp File Reference

Defines the MDENode structure and related tools. More...

#include "mde_common.hpp"
#include "profiling.hpp"
#include <tuple>
#include <utility>
#include <algorithm>

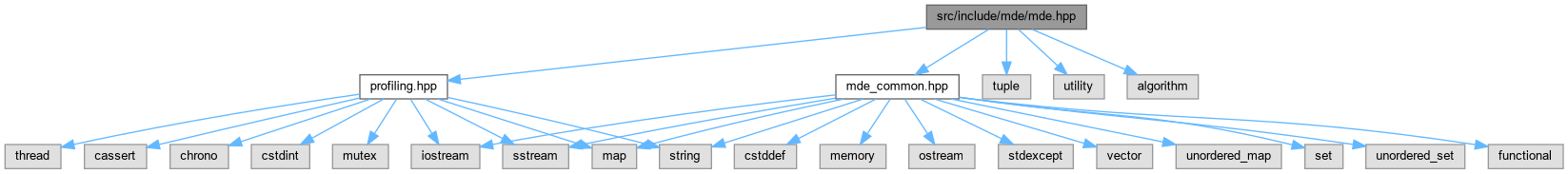

Include dependency graph for mde.hpp:

Go to the source code of this file.

Classes
struct	mde::OperationNode
	This struct contains the information about the operands of an operation (union, intersection, etc.) More...
struct	std::hash< mde::OperationNode >
struct	mde::SetLess< OrderedSetT, ElementT, PropertyLess >
	Generic Less-than comparator for set types. More...
struct	mde::SetHash< SetT, ElementT, ElementHash >
	Hasher for set types. More...
struct	mde::SetEqual< SetT, ElementT, PropertyEqual >
	Generic Equality comparator for set types. More...
struct	mde::AssertError
	Struct that is thrown on an assertion failure. More...
struct	mde::Unreachable
	Thrown if code region is unreachable. More...
struct	mde::NestingNone< PropertyT >
	The nesting type for non-nested data structures. Act as "leaf" nodes in a tree of nested MDEs. More...
struct	mde::NestingNone< PropertyT >::PropertyElement< PropertyLess, PropertyHash, PropertyEqual, PropertyPrinter >
	Base-case type for the elements for a property set. The template arguments are for the 'key' type. More...
struct	mde::NestingNone< PropertyT >::PropertyElement< PropertyLess, PropertyHash, PropertyEqual, PropertyPrinter >::Hash
struct	mde::NestingNone< PropertyT >::PropertyElement< PropertyLess, PropertyHash, PropertyEqual, PropertyPrinter >::FullEqual
	This forces a comparison of both the key and the value instead of only the key. Required in instances where distinguishing this is necessary (like in the property set storage array). More...
struct	mde::NestingBase< PropertyT, ChildT >
	Describes the standard nesting structure. Act as "non-leaf" nodes in a tree of nested MDEs. More...
struct	mde::NestingBase< PropertyT, ChildT >::PropertyElement< PropertyLess, PropertyHash, PropertyEqual, PropertyPrinter >
	Type for the elements for a property set in the nested. The template arguments are for the 'key' type. More...
struct	mde::NestingBase< PropertyT, ChildT >::PropertyElement< PropertyLess, PropertyHash, PropertyEqual, PropertyPrinter >::Hash
struct	mde::NestingBase< PropertyT, ChildT >::PropertyElement< PropertyLess, PropertyHash, PropertyEqual, PropertyPrinter >::FullEqual
	This forces a comparison of both the key and the value instead of only the key. Required in instances where distinguishing this is necessary (like in the property set storage array) More...
class	mde::MapAdapter< MapClass >
struct	mde::OperationPerf
	Operation performance Statistics. More...
struct	mde::MDEConfig< T >
class	mde::MDENode< Config, NestingT >
	The main MDENode structure. This class can be used as-is with a type or derived for additional functionality as needed. More...
struct	mde::MDENode< Config, NestingT >::Index
	Index returned by an operation. Being defined inside the class ensures type safety and possible future extensions. More...
struct	mde::MDENode< Config, NestingT >::Index::Hash
struct	mde::MDENode< Config, NestingT >::PropertySetHolder
class	mde::MDENode< Config, NestingT >::PropertySetStorage
struct	mde::Deduplicator< PropertyT, PropertyHash, PropertyEqual, PropertyPrinter >
	An straightforward deduplicator for scalar values. It does not implement any special operations besides deduplication. Unlike MDE, this does NOT enforce constness on the data items registered. However, a mutable access must always be marked. More...
struct	mde::Deduplicator< PropertyT, PropertyHash, PropertyEqual, PropertyPrinter >::Index
	Index returned by the class. Being defined inside the class ensures type safety and possible future extensions. More...
struct	mde::Deduplicator< PropertyT, PropertyHash, PropertyEqual, PropertyPrinter >::Index::Hash
struct	mde::Deduplicator< PropertyT, PropertyHash, PropertyEqual, PropertyPrinter >::PropertyPtrHash
struct	mde::Deduplicator< PropertyT, PropertyHash, PropertyEqual, PropertyPrinter >::PropertyPtrEqual

Namespaces
namespace	mde

Macros
#define	__MDE_EXCEPT(__msg)   AssertError(__msg " [At: " __FILE__ ":" __MDE_STR(__LINE__) "]")
#define	__MDE_ASSERT(__cond, __msg_arg)    { if (!(__cond)) { __MDE_EXCEPT(__msg_arg); } }
#define	MDE_PROPERTY_SET_INTEGRITY_VALID(__set)    verify_property_set_integrity<PropertySet, PropertyElement>(__set);
	Macro and switch for verify_property_set_integrity inside MDE.
#define	MDE_PROPERTY_SET_INDEX_VALID(__index)
	Check whether the index is a valid index within the property set.
#define	MDE_PROPERTY_SET_PAIR_VALID(__index1, __index2)
	Check whether the pair of indexes is a valid within the property set.
#define	MDE_PROPERTY_SET_PAIR_UNEQUAL(__index1, __index2)
	Check whether the pair of indexes are unequal. Used for sanity checking.
#define	MDE_PARALLEL(__x)
#define	MDE_EVICTION(__x)
#define	MDE_PUSH_ONE(__cont, __val)   (__cont).push_back((__val))
	Pushes one element to a PropertySet. Use this when implementing operations.
#define	MDE_PUSH_RANGE(__cont, __start, __end)   (__cont).insert((__cont).end(), (__start), (__end))
	Pushes a range of elements to a PropertySet using an iterator. Use this when implementing operations.
#define	MDE_REGISTER_SET_INTERNAL(__set, __cold)   register_set<MDE_DISABLE_INTERNAL_INTEGRITY_CHECK>((__set), (__cold))
	Registers a set with behaviours defined for internal processing.
#define	MDE_BINARY_NESTED_OPERATION(__op_name)
	Declares a struct that enables the recursive/nesting behaviour of an operation.
#define	MDE_PERFORM_BINARY_NESTED_OPERATION(__op_name, __reflist, __arg1, __arg2)    ((__arg1) . template apply<__NestingOperation_ ## __op_name>((__reflist), (__arg2)))
	Actually enables the nesting. this must be placed in the operation body where the nested behaviour is needed.
#define	MDE_PERF_INC(__oper, __category)   (perf[__MDE_STR(__oper)] . __category ++)
	Increments the invocation count of the given category and operator.
#define	MDE_PROPERTY_INDEX_VALID(__index)

Typedefs
template<typename K , typename V >
using	mde::InternalMap = MapAdapter< HashMap< K, V > >
template<typename T >
using	mde::OperationMap = InternalMap< T, IndexValue >

Functions
std::ostream &	mde::operator<< (std::ostream &os, const OperationNode &op)

Detailed Description

Defines the MDENode structure and related tools.

Definition in file mde.hpp.

Macro Definition Documentation

__MDE_ASSERT

#define __MDE_ASSERT	(		__cond,
			__msg_arg
	)		{ if (!(__cond)) { __MDE_EXCEPT(__msg_arg); } }

Definition at line 205 of file mde.hpp.

__MDE_EXCEPT

#define __MDE_EXCEPT

(

__msg

)

AssertError(__msg " [At: " __FILE__ ":" __MDE_STR(__LINE__) "]")

Definition at line 202 of file mde.hpp.

MDE_BINARY_NESTED_OPERATION

#define MDE_BINARY_NESTED_OPERATION

(

__op_name

)

Value:

    struct __NestingOperation_ ## __op_name { \
        template<typename ArgIndex, typename MDE> \
        void operator()(ArgIndex &ret, MDE &mde, const ArgIndex &c, const ArgIndex &d) { \
            ret = mde . __op_name (c, d); \
        } \
    };

Declares a struct that enables the recursive/nesting behaviour of an operation.

Parameters

__op_name

The operation name. Must match the function name (e.g. set_union, set_intersection etc.)

Returns

The set declaration.

Definition at line 481 of file mde.hpp.

MDE_EVICTION

#define MDE_EVICTION

(

__x

)

Definition at line 315 of file mde.hpp.

MDE_PARALLEL

#define MDE_PARALLEL

(

__x

)

Definition at line 309 of file mde.hpp.

MDE_PERF_INC

#define MDE_PERF_INC	(		__oper,
			__category
	)		(perf[__MDE_STR(__oper)] . __category ++)

Increments the invocation count of the given category and operator.

Note

Conditionally enabled if MDE_ENABLE_PERFORMANCE_METRICS is set.

Parameters

__oper	The operator (e.g. unions)
__category	The category (e.g. hits)

Definition at line 910 of file mde.hpp.

MDE_PERFORM_BINARY_NESTED_OPERATION

#define MDE_PERFORM_BINARY_NESTED_OPERATION	(		__op_name,
			__reflist,
			__arg1,
			__arg2
	)		((__arg1) . template apply<__NestingOperation_ ## __op_name>((__reflist), (__arg2)))

Actually enables the nesting. this must be placed in the operation body where the nested behaviour is needed.

Parameters

__op_name	The operation name.
__reflist	The reference list of the MDE
__arg1	LHS argument of the binary operation
__arg2	RHS argument of the binary operation

Definition at line 500 of file mde.hpp.

MDE_PROPERTY_INDEX_VALID

#define MDE_PROPERTY_INDEX_VALID

(

__index

)

Value:

    { \
    _Pragma("GCC diagnostic push"); \
    _Pragma("GCC diagnostic ignored \"-Wtype-limits\"") \
    if ((__index.value) < 0 || ((__index.value) > property_list.size() - 1)) { \
        throw __MDE_EXCEPT("Invalid index supplied"); \
    } \
    _Pragma("GCC diagnostic pop") \
}

Check whether the index is a valid index within the current state of the deduplicator

Definition at line 2433 of file mde.hpp.

MDE_PROPERTY_SET_INDEX_VALID

#define MDE_PROPERTY_SET_INDEX_VALID

(

__index

)

Value:

    { \
    _Pragma("GCC diagnostic push"); \
    _Pragma("GCC diagnostic ignored \"-Wtype-limits\"") \
    if ((__index.value) < 0 || ((__index.value) > property_sets.size() - 1)) { \
        throw __MDE_EXCEPT("Invalid index supplied"); \
    } \
    _Pragma("GCC diagnostic pop") \
}

Check whether the index is a valid index within the property set.

Note

Signed/unsigned is made to be ignored here for the sanity checking.

Check whether the index is a valid index within the current MDE state.

Note

Signed/unsigned is made to be ignored here for the sanity checking.

Definition at line 278 of file mde.hpp.

MDE_PROPERTY_SET_INTEGRITY_VALID

#define MDE_PROPERTY_SET_INTEGRITY_VALID

(

__set

)

verify_property_set_integrity<PropertySet, PropertyElement>(__set);

Macro and switch for verify_property_set_integrity inside MDE.

Parameters

__set

The property set.

Definition at line 251 of file mde.hpp.

MDE_PROPERTY_SET_PAIR_UNEQUAL

#define MDE_PROPERTY_SET_PAIR_UNEQUAL	(		__index1,
			__index2
	)

Value:

    if ((__index1) == (__index2)) { \
        throw __MDE_EXCEPT("Equal set condition not handled by caller"); \
    }

Check whether the pair of indexes are unequal. Used for sanity checking.

Definition at line 293 of file mde.hpp.

MDE_PROPERTY_SET_PAIR_VALID

#define MDE_PROPERTY_SET_PAIR_VALID	(		__index1,
			__index2
	)

Value:

    MDE_PROPERTY_SET_INDEX_VALID(__index1); \
    MDE_PROPERTY_SET_INDEX_VALID(__index2);

Check whether the pair of indexes is a valid within the property set.

Definition at line 288 of file mde.hpp.

MDE_PUSH_ONE

#define MDE_PUSH_ONE	(		__cont,
			__val
	)		(__cont).push_back((__val))

Pushes one element to a PropertySet. Use this when implementing operations.

Parameters

__cont	The container object
__val	The value

Definition at line 327 of file mde.hpp.

MDE_PUSH_RANGE

#define MDE_PUSH_RANGE	(		__cont,
			__start,
			__end
	)		(__cont).insert((__cont).end(), (__start), (__end))

Pushes a range of elements to a PropertySet using an iterator. Use this when implementing operations.

Parameters

__cont	The container object
__start	The start of the range (e.g. input.begin())
__end	The end of the range (e.g. input.end())

Definition at line 339 of file mde.hpp.

MDE_REGISTER_SET_INTERNAL

#define MDE_REGISTER_SET_INTERNAL	(		__set,
			__cold
	)		register_set<MDE_DISABLE_INTERNAL_INTEGRITY_CHECK>((__set), (__cold))

Registers a set with behaviours defined for internal processing.

Parameters

__set	The set
__cold	Whether this was a cold miss or not (pointer to bool)

Definition at line 349 of file mde.hpp.
